Unique Wave Style Tile Roof Roll Forming Machine for Making Color Steel Tile

Name: Unique Wave Style Tile Roof Roll Forming Machine for Making Color Steel Tile
Brand: Shenghong
Price: 1 USD

China Unique Wave Style Tile Roof Roll Forming Machine for Making Color Steel Tile factory

Brand Name : Shenghong

Model Number : Roof Tile SWL151211-41

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1 sets

Price : Negotiation

Payment Terms : T/T

Supply Ability : 30 SETS/ MONTH

Delivery Time : 40 days after payment

Packaging Details : 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.

Yield Stress : 230-300 Mpa

Machine Type : Roofing Tile Roll Forming Machine

Rollers : Surface-chrome plated Rollers

Life time of Machine : about 10 years

Hydraulic station motor power : 5.5 kw

Roller Dirve type : Chain transmission

Contact Now

Unique Wave Style Tile Roof Roll Forming Machine for Making Color Steel Tile

Roof roll forming machine Introduction

The wave tile sheet is rolled and pressed by the Roof Tile series modular tile sheet roll forming machine, it has many features, such as good appearance, primitive simplicity and elegance, unique style, noblest grade, and etc. It is widely used in garden style factories, scenic resorts, pavilions, hotels, villas, exhibition halls, country clubs, and so on for outdoor decorations.
Roof Tile series modular tile sheet roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, pressing die, shearing device, hydraulic station, PLC control console and so on. Our company has dozens of profile models for this series roll forming machine, such as SHTM25-183-1100, SHTM28-207-828, and etc. We can design different kinds of profile and fittings for machine, as per customers' requirements.

Technical Parameters

Model		Roof Tile SWL151211-41
Material	Typle	Color steel sheet
	(mm)Thickness	0.3-0.7
	(Mpa)Yield stress	230-300
(m/min)Max. Forming speed		2-3
Roller material		45# steel with chrome
Roller driven type		Chain transmission
Controller		PLC
Operation		Touch screen and button
(Mpa)Hydraulic system pressure		12
(KW)Hydraulic station motor power		5.5
(KW)Main motor power		5.5
(KW)Total power		11
(Kg)Total weight		About 80000

Working Flow

Uncoiling→Sheet Guiding→Roll Forming→Pressing→Measuring Length &Shearing→Sheet to Support Table.

Unique Wave Style Tile Roof Roll Forming Machine for Making Color Steel Tile

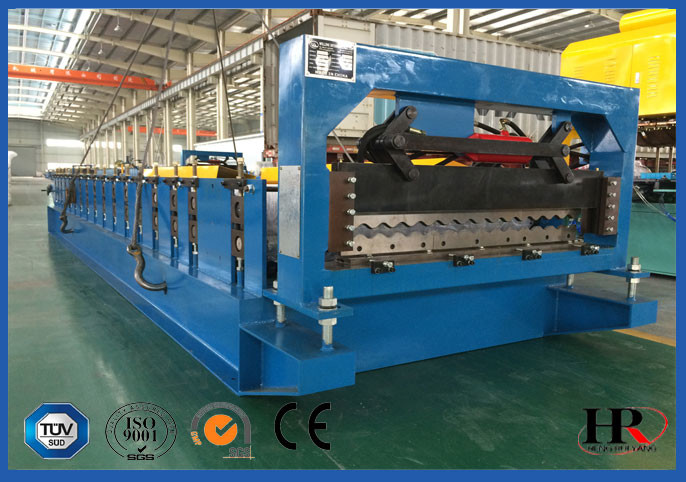

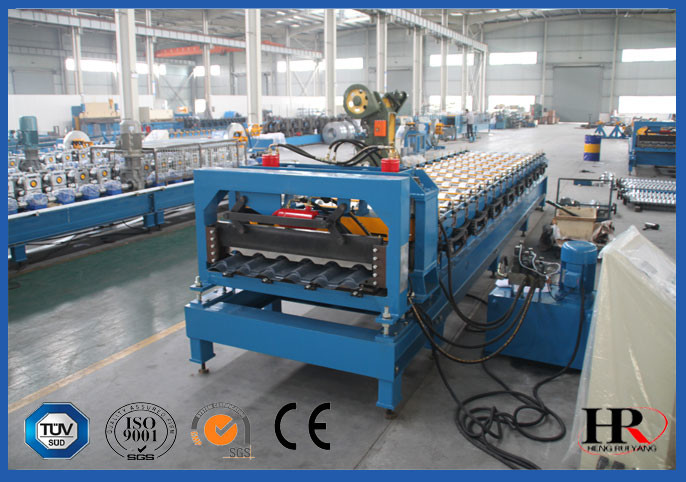

Machinery Shows

Unique Wave Style Tile Roof Roll Forming Machine for Making Color Steel Tile
